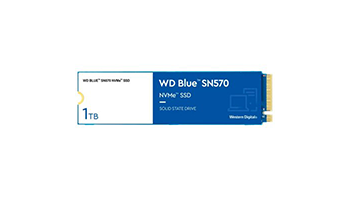

WESTERN DIGITAL WDS100T3B0C SSD WD Blue (M.2, 1TB, PCIe Gen3)
Disk configuration
Location of the Plug-in Module device
Form factor M.2 (2280)
1 TB storage device capacity
PCI Express 3.0 x4 data channel supported
External data transfer rate supported 8 Gbps
Certificates BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI
NAND Flash memory technology
Triple-Level Cell flash memory technology
Exterior color Blue
Productivity
Maximum Random Read Rate 460000 IOPS
Maximum Random Write Rate 450000 IOPS
Maximum Sequential Read Rate 3500 MB/s
Maximum Sequential Write Rate 3000 MB/s
Total Bytes Written (TBW) 600 TB
Reliability
Mean time between failures 1500000 hrs.
Shock resistance when working 1500G @ 0.5ms
Vibration tolerance for 5G operation @ 10-2000Hz
Storage Vibration Tolerance 4.9G @ 7-800Hz
Energy consumed
Maximum power consumption 3.5 W
Minimum power consumption 5 mW
Terms of use
Maximum ambient temperature 70 °C
Minimum ambient temperature 0 °C
Max. ambient temperature in off mode 85 °C
Min. non-operating ambient temperature -40 °C
Dimensions and weight
Width 22 mm
Height 2.38 mm
Depth 80 mm
Nominal weight 0.0065 kg
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.027 kg
Package Weight - Net (kg) 0.007 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.027 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in Carton 1
Package type Box
