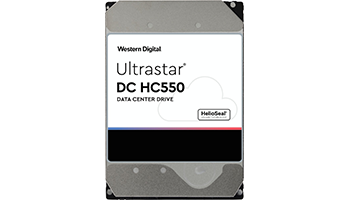

Western Digital Ultrastar DC HC550 16TB WUH721816ALE6L4
HDD Server WD/HGST ULTRASTAR DC HC550 (3.5’’, 16TB, 512MB, 7200 RPM, SATA 6Gb/s, 512N SE NP3), SKU: 0F38462
Disk configuration
Device location Internal
Form factor 3.5 "
Storage device capacity 16 TB
Supported data channel SATA III-600
512 MB cache capacity installed
Maximum capacity of sectors 512 B
Productivity
Rotation speed 7200 rpm
Average rotation delay 4.16 ms
Supported external data transfer rate 6 Gbps
Reliability
Irrecoverable errors 1 per 10 ^ 15
Average time between damages 2500000 hr
Start / stop cycles 600,000
Hard disk features 24/7
TCOptimized
HelioSeal Technology
Impact resistance when working 50G @ 2ms
Shock resistance when stored 250G @ 2ms
Vibration tolerance during operation 0.67G @ 5-500Hz
Storage vibration tolerance 1.04G @ 2-200Hz
Energy consumption
Maximum supply voltage 12 V
Minimum supply voltage 5 V
Maximum power consumption 6.5 W
Operating conditions
Max. operating ambient temperature 60 V ° C
Min. operating ambient temperature 5 V ° C
Max. ambient temperature in off mode 70 V ° C
Min. non-operating ambient temperature -40 V ° C
Dimensions and weight
Depth 147 mm
Height 26.1 mm
Width 101.6 mm
Nominal weight 0.69 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria FPO Number
Logistic information
Package weight - Gross (kg) 0.69 kg
Package weight - Net (kg) 0 kg
Number in package 1
Carton weight - Gross (kg) 13.8 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in a carton 20
Box type package
