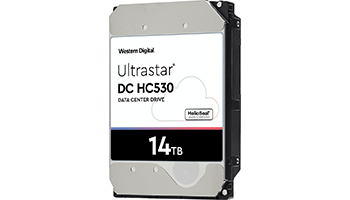

Western Digital DC HC530 14TB WUH721414AL5204
Western Digital Ultrastar DC HDD Server HE14 (3.5’’, 14TB, 512MB, 7200 RPM, SAS 12Gb/s, 512E SE P3), SKU: 0F31052
Disk configuration
Device location Internal
Form factor 3.5 "
Storage device capacity 14 TB
SAS data channel supported
512 MB cache capacity installed
Maximum capacity of sectors 512 B
Productivity
Rotation speed 7200 rpm
Average rotation delay 4.16 ms
Maximum search time 7.5 ms
Supported internal data transfer 267 Mbps
Supported external data transfer rate 12 Gbps
Reliability
Irrecoverable errors 1 per 10 ^ 15
Average time between damages 2500000 hr
Hard disk features 24/7
HelioSeal Technology
Impact resistance when operating 70G
Shock resistance when stored 300G @ 2ms
Vibration tolerance during operation 0.67G @ 5-500Hz
Storage vibration tolerance 1.04G @ 2-200Hz
Supported interfaces
SATA III 1 (7-pin SATA);
Energy consumption
Maximum supply voltage 12 V
Minimum supply voltage 5 V
Maximum power consumption 8.5 W
Minimum power consumption 5.9 W
Operating conditions
Max. operating ambient temperature 60 V ° C
Min. operating ambient temperature 5 V ° C
Max. ambient temperature in off mode 70 V ° C
Min. non-operating ambient temperature -40 V ° C
Typical operating noise level 36 dB
Dimensions and weight
Depth 147 mm
Height 26.1 mm
Width 101.6 mm
Nominal weight 0.69 kg
Other features
Box type package
Warranty
Warranty products - refundable Yes
Warranty conditions (month) 60 months
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.69 kg
Package weight - Net (kg) 0 kg
Number in package 1
Carton weight - Gross (kg) 13.8 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
