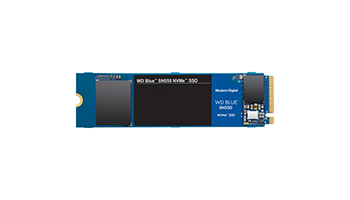

Western Digital Blue SN550 NVMe 500GB WDS500G2B0C
Disk configuration
Location of the Plug-in Module
Form factor M.2 (2280)
Storage device capacity 500 GB
Supported PCIe NVMe data channel
Supported external data transfer rate 8 Gbps
Certificates UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3 (B) / NMB-3 (B)
NAND Flash memory technology
Exterior color Blue
Productivity
Maximum Random Read Rate 300000 IOPS
Maximum Random Write Rate 240000 IOPS
Maximum Sequential Read Rate 2400 MB / s
Maximum Sequential Write Rate 1750 MB / s
Total Bytes Written (TBW) 300 TB
Reliability
Average time between damages 1700000 hr
Impact resistance when working 1500G @ 0.5ms
Vibration tolerance for operation 5G @ 10-2000Hz
Storage vibration tolerance 4.9G @ 7-800Hz
Energy consumption
Maximum power consumption 3.9 W
Minimum energy consumption 5 mW
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -55 V ° C
Dimensions and weight
Depth 82 mm
Height 2.38 mm
Width 22 mm
Nominal weight 0.0065 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0 kg
Package weight - Net (kg) 0 kg
Number in package 1
Carton weight - Gross (kg) 0 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in cartons 1
Box type package
EAN code 718037868752
