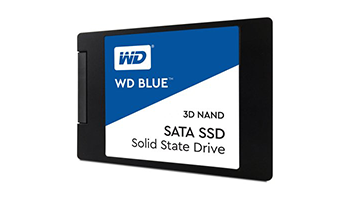

Western Digital Blue 3D 1TB WDS100T2B0A
Disk configuration
Device location Internal
Form factor 2.5 "
Storage device capacity 1 TB
Supported data channel SATA III-600
Supported external data transfer rate 6 Gbps
Certificates FCC, UL, TUV, KC, BSMI, VCCI
Triple-Level Cell flash memory technology
Productivity
Maximum Random Read Rate 95000 IOPS
Maximum Random Write Rate 84000 IOPS
Maximum Sequential Read Rate 560 MB / s
Maximum Sequential Write Rate 530 MB / s
Total Bytes Written (TBW) 400 TB
Reliability
Average time between failures 1750000 hr
Supported standards S.M.A.R.T.
Impact resistance when working 1500G @ 0.5ms
Vibration tolerance for operation 5G @ 10-2000Hz
Storage vibration tolerance 4.9G @ 7-800Hz
Energy consumption
Maximum power consumption 3.75 W
Minimum energy consumption 5 mW
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -55 V ° C
Dimensions and weight
Depth 100.2 mm
Height 7 mm
Width 69.85 mm
Nominal weight 0.0374 kg
Box type package
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.03 kg
Package weight - Net (kg) 0 kg
Number in package 1
Carton weight - Gross (kg) 0.03 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in cartons 1
EAN code 718037856278
