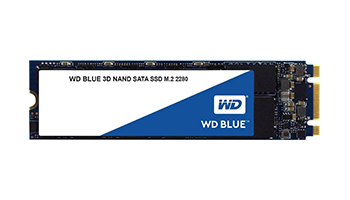

Western Digital Blue 3D 500GB M.2 WDS500G2B0B
Disk configuration
Location of the Plug-in Module
Form factor M.2 (2280)
Storage device capacity 500 GB
Supported data channel SATA III-600
Supported external data transfer rate 6 Gbps
Certificates FCC, UL, TUV, KC, BSMI, VCCI
Triple-Level Cell flash memory technology
Productivity
Maximum Random Read Rate 100000 IOPS
Maximum Random Write Rate 80000 IOPS
Maximum Sequential Read Rate 545 MB / s
Maximum Sequential Write Rate 525 MB / s
Total Bytes Written (TBW) 200 TB
Reliability
Average time between failures 1750000 hr
Supported standards S.M.A.R.T.
Impact resistance when working 1500G @ 0.5ms
Vibration tolerance for operation 5G @ 10-2000Hz
Storage vibration tolerance 4.9G @ 7-800Hz
Energy consumption
Maximum power consumption 4 W
Minimum energy consumption 6 mW
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient temperature in off mode 85 V ° C
Min. non-operating ambient temperature -55 V ° C
Dimensions and weight
Depth 80 mm
Height 2.23 mm
Width 22 mm
Nominal weight 0.007 kg
Box type package
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0 kg
Package weight - Net (kg) 0 kg
Number in package 1
Carton weight - Gross (kg) 0 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in cartons 1
EAN code 718037856261
