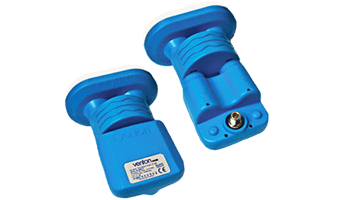

Venton Monoblock Single LNB 0.1dB HD Ready BLU Series - ultra-low
     Noise figure of only 0.1dB!
     A new era in terms of image sharpness has begun with this LNB they are well equipped.
     A LNB in ​​reliable professional quality for their razor-sharp viewing experience. Suitable for
     simultaneous reception of Astra 19.2 ° and Eutelsat W2 16 ° or 13 ° and HotBird Euro Bird 9 ° or
     HotBird 13 ° and Eutelsat 16 ° with VENTON Monoblock Single LNB BL-MBS is ideal for
     to receive two satellite with only a distance of 3 or 4 degrees of 1 receivers. By
     integrated DiSEqC switch is a switch between the two Satellite and the plains
     Horizontal and Vertical possible.
     The LNB corresponds to the latest state of the art, suitable for digital, analog, Premiere and HDTV.
     You can it connect any receiver.

     Technical specifications:

    Model: BL-Venton MBS 3 °
    Analog - Digital - HDTV compatible
    0.1dB noise figure
    suitable for 1 student
    Receiving 2 satellites
    integrated DiSEqC switch
    Wetterschutzt
    Low Band:
    Input frequency range 10.7 to 11.70 GHz
    Output frequency range: 950 - 1950 MHz
    LO Frequency: 9.75 GHz
    High Band:
    Input frequency range from 11.70 to 12.75 GHz
    Output frequency range: 1100 - 2150 MHz
    LO frequency: 10.6 GHz
    Conversion gain (room temperature): 50 dB (min.) / 60 dB (max.)
    Gain over frequency response: ± 0.7 dB / 26 MHz
    Gain variation: 7 dB / Full Band
    Local oscillator stability: ± 1.0 MHz (max.) @ 25 ° C
                                          ± 3.0 MHz (max.) @ -30 ° C ~ + 60 ° C
    Local oscillator phase noise: -50 dBc / Hz @ 1 KHz
                                                   -75 DBc / Hz @ 10 KHz
                                                   -90 DBc / Hz @ 100 KHz
    Image Rejection: 40 dB (min.)
    Compression point: 0 dBm
    Cross Pol. Isolation: 25 dB (typ.)
    VSWR: 2.5: 1 (max.)
    Current consumption: 160 mA (max.)
    Voltage: 11.5 ~ 19.0 V
    Band switching: Low Band: 0 kHz
                             High band: 22 kHz ± 4 kHz
    Operating temperature: -30'C to + 60'C
    Input Feedhorn Type: Linear
                                     C120 optimized offset mirror
                                     F / D ratio 0.45 to 0.70
    Output: 75 ohm F-connector (female)
    Switching 13V / 18V and 0/22 kHz
    extremely heat-resistant and cold
    Universal LNB 3 ° (analog / digital)
    Feed-diameter 60mm
    low energy consumption
