OP High quality coaxial cable for SAT, DVB-T, cable or terrestrial TV. The very good shielding provides a true shielding of 130dB and protects so absolutely reliable against interference such as cordless phones or similar sources of interference. By meter marking you know how much has been misplaced and how much you still have on the role. Permanent UV resistance due to low calcium content guarantees best function.
This cable features the optimum combination of all line attenuation, shielding attenuation, coupling resistance, and return loss under Venton coaxial cables. It was certified over the dibkom CLASS A +! When buying, pay attention to the designation class B, A or A + marking and not only opt for a high shielding level (dB), but for the overall classification.

    Inner conductor: pure copper
    Shielding dimension: max. 130dB
    5 times shielded
    with meter mark
    Model: RG7F-KU-A +
    Foamed dielectric
    Meter division on sheathing
    Color white
    UV-resistant
    house installation


Properties:

    Inner conductor Material: CU-copper Blank Ø, mm: 1.0 ± 0.01
    Insulation Material: foamed PE red Ø, mm: 4.6 ± 0.05
    Shielding: 1. Shielding: glued AI / PE foil; 2. Shielding: wire mesh, Alu-Mg alloy, 16x2x0.12 (25%); 3. Shielding: Non-glued AI / PE film; 4. Shielding: wire mesh, Al-Mg alloy 16x4x0.12 (45%); 5. Shielding: Non-glued Al / PE foil;
    Sheath:
    Material: PVC (ROHS), white Ø: 7.3 ± 0.2mm
    Electrical Properties
    Impedance, ohms 75 ± 3
    Shielding dimension max. 130 dB attenuation
    Shielding attenuation corresponds to Class A + according to DIN EN 50117-2-4. Coupling resistor Class A +.
    5 Frequency, MHz: 0.7 Nominal attenuation a (alpha) [dB / 100m]
    50 Frequency, MHz: 2.4 Nominal attenuation a (alpha) [dB / 100m]
    100 frequency, MHz: 3.9 nominal attenuation a (alpha) [dB / 100m]
    200 Frequency, MHz: 6.3 Nominal attenuation a (alpha) [dB / 100m]
    400 frequency, MHz: 10.0 nominal attenuation a (alpha) [dB / 100m]
    800 Frequency, MHz: 15.4 Nominal attenuation a (alpha) [dB / 100m]
    1600 frequency, MHz: 23.3 nominal attenuation a (alpha) [dB / 100m]
    3000 Frequency, MHz: 29.6 Nominal attenuation a (alpha) [dB / 100m]
    reflection loss
    VHF, dB> = 20
    UHF, dB> = 20
    Bending radius: single / single: 28 mm | Multiple / multiple: 75 mm
    Operating temperature: -25 ° C to +70 ° C


Delivery:

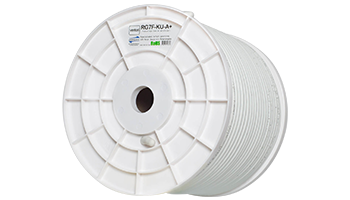

    130dB SAT coaxial cable white
