odel Number

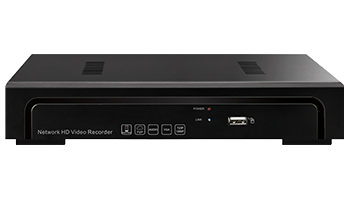

 VC-6100-8EP/48

 Operating System

 Embedded LINUX operating system

 Image Code Control

 Image code quality adjustable, variable bitstream and constant bitstream optional

 Dual Stream

 Each channel can set main stream and sub stream

 Video Standard

 H.264

 Monitoring Image Quality

 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

 Image Motion Detection

 Each screen can set mutiple detection areas and set 6-level sensitivity（IPC  Support）

 Recording Playback Quality

 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P model

 Region Cover

 Every channel can set 4 cover regions（IPC Support）

 Recording Mode

 Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs  IPC Support)

 Backup Way

 Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

 Operation Way

 Mouse

 Local Login

 Username and password

 Recording Storage

 Local HDD, network

 External Ports

 Video Input

 ① 8×(1280*720) +sub[640*360]+1Ref.+4Play      8ch 1.0MP IP Camera

 ② 8×(1280*960)+sub[640*480]+4Ref.+1Play       8ch 1.3MP IP Camera

 ③ 8×(1280*1080)+sub[640*480]+2Ref.+1Play     8ch 2.0MP IP Camera

 ④ 8×(1920*1080)+sub[720*576]+1Ref.+1Play     8ch 2.0MP IP Camera

 /

 Audio Input

 8ch network audio input

 Video Output

 1ch VGA+1ch HDMI

 Audio Output

 1ch RCA Output

 Network Port

 9 RJ45, 100M LAN port, data transferring and power supply both by network cable

 USB Port

 3 USB 2.0 ports

 Wireless Port

 WIFI

 HDD

 HDD Port

 1 SATA HDD Port

 MAX Capacity

 Each port supports MAX 6TB HDD

 Mobile Surveillance

 Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

 Power Supply

 DC48V2.5A

 Power Consumption

 ≤115W（without HDD）

 Working Temperature

 -10℃～＋55℃

 Working Humidity

 10％-90％

 Dimension

 Equipment：260mm×220mm×43mm， Packing：355mm×255mm×88.5mm

 Weight(without HDD)

 N.W.：1.8Kg；With packing：2.7Kg

 Installation Way

 Desktop Installation
