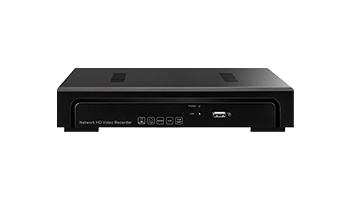

Model Number

 N6100-4EP/48

 Operating System

 Embedded LINUX operating system

 Image Code Control

 Image code quality adjustable,variable bitstream and constant bitstream optional

 Dual Stream

 Each channel can set main stream and sub stream

 Video Standard

 H.264

 Monitoring Image Quality

 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

 Image Motion Detection

 Each screen can set mutiple detection areas and set 6-level sensitivity（IPC Support）

 Recording Playback Quality

 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P

 Region Cover

 Every channel can set 4 cover regions（IPC Support）

 Recording Mode

 Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC  Support)

 Backup Way

 Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

 Operation Way

 Mouse, Keyboard

 Local Login

 Username and password

 Recording Storage

 Local HDD, network

 External  Ports

 Video Input

 ① 4×(1280*720) +sub[960*576]+4Ref.+4Play        4ch 1.0MP IP Camera

 ② 4×(1280*960)+sub[960*576]+1Ref.+4Play         4ch 1.3MP IP Camera

 ③ 4×(1920*1080)+sub[960*576]+4Ref.+1Play       4ch 2.0MP IP Camera

 ④ 1×(1920*1080)+sub[960*576]+4Ref.+1Play       1ch 2.0MP IP Camera

 ⑤ 4×(720*576)+sub[352*288]+4Ref.+1Play          4ch 0.4MP IP Camera

 Audio Input

 4ch network audio input

 Video  Output

 1ch VGA+1ch HDMI

 Audio  Output

 1ch RCA Output

 Network  Port

 5 RJ45, 100M LAN port, data transferring and power supply both by network cable

 USB Port

 3 USB 2.0 ports

 Wireless  Port

 WIFI

 HDD

 HDD Port

 1 SATA HDD Port

 MAX  Capacity

 Each port supports MAX 6TB HDD

 Mobile Surveillance

 Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

 Power Supply

 DC48V2A

 Power Consumption

 ≤70W（without HDD）

 Working Temperature

 -10℃～＋55℃

 Working Humidity

 10％-90％

 Dimension

 Equipment：260mm×220mm×43mm， Packing：355mm×255mm×88.5mm

 Weight(without HDD)

 N.W.：1.6Kg；With packing：2.5Kg

 Installation Way

 Desktop Installation
