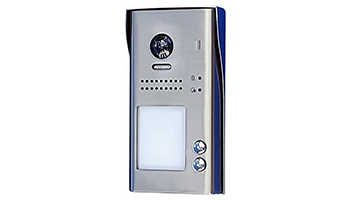

V-TEC DT607C-S2 Front panel - 2 posts with built-in high resolution color camera and visor



Front panel with built-in high-resolution color camera and visor for surface mounting. Wide angle lens 105 °. Two buttons for calling the subscriber, automatic sensor for switching on the lighting, IP54 degree of protection. Opportunity for extra external PIR module. Compatible with all DT two-wire systems, 24 Vdc power supply. Possibility to place a nameplate. Unlock light and call. Programmable unlock time from 1-99 sec, talk time up to 90 sec, Dimensions: 176 (H) x90 (W) x27 (D)



Power supply: DC 24V



Power consumption: Standby 0.8W; Working 3W



Camera lens: Color CMOS, 520TVL



1/4’’ camera,105⁰ wide angle



Lock Power supply: 12Vdc, 250mA(Internal Power);



Number of relay circuits: 2(the second lock need external device to support)



Mounting: Surface wall-mount



Working temperature: -20ºC ~ +55ºC



Protection: IP54



Material: Zinc alloy panel



Wiring: 2 wires, non-polarity



Dimension: 176(H)×90(W)×27(D)mm
