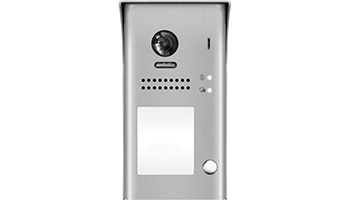

V-TEC DT607C-S1 Single-panel front panel with built-in high-resolution color camera and visor



Front panel with built-in high-resolution color camera and visor for surface mounting. Wide angle lens 105 °. One button for calling the subscriber, automatic sensor for switching on the lighting, IP54 degree of protection. Opportunity for extra external PIR module. Compatible with all DT two-wire systems, 24 Vdc power supply. Possibility to place a nameplate. Unlock light and call. Programmable unlock time from 1-99 sec, talk time up to 90 sec, Dimensions: 176 (H) x90 (W) x27 (D)



· Colored boutonniere of 1 bell



· Quality construction of ZINC ALLOY



· Wall mounting



· 105⁰ Color CMOS wide angle camera, 520TVL



· Accepts up to 4 monitors per call



· It has an IR LED for shooting in the dark



· 1 output for cypress



· It has a protection canopy



· IP54 waterproof rate.



· Boutonniere dimensions 176 (H) × 90 (W) × 27 (D) mm







Power supply: DC 24V



Power consumption: Standby 0.8W; Working 3W



Camera lens: Color CMOS, 520TVL



1/4 ”camera, 105 camera wide angle



Lock Power supply: 12Vdc, 250mA (Internal Power);



Number of relay circuits: 2 (the second lock need external device to support)



Mounting: Surface wall-mount



Working temperature: -20ºC ~ + 55ºC



Protection: IP54



Material: Zinc alloy panel



Wiring: 2 wires, non-polarity



Dimension: 176 (H) × 90 (W) × 27 (D) mm
