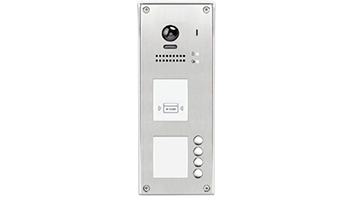

V-TEC DT604SDF Vandal-resistant front panel - 4 stainless steel posts



Vandal-resistant stainless steel front panel, with built-in high-resolution color camera and 105 ° wide-angle lens, for digging, two subscriber selection buttons, IP54 degree of protection, compatible with all DT two-wire systems, 24 Vdc power supply, programmable locking time -1-9 sec, talk time 90 sec.



DVC manufacturer

System 2 Easy

Audio + Video communication mode

Connection method 2 wires

Installation of Recessed (box included)

Dimensions 110 x 188 x 39

Item type Panel outdoor unit

Number of call buttons 4

Lock control mode Voltage (12Vdc, 300mA) / Relay output

Number of controlled outputs 2

Color camera

ARS Color Sensor; 650 TVL

Effective camera viewing angle

24 VDC power supply (PS4-24V or PS5-24V)

Operating temperature -15 ° C to + 45 ° C
