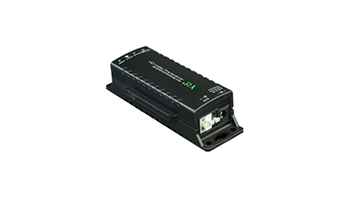

UTEPO UTP101AR-HD2 1CH HD Analog Video Active UTP Receiver



The 1ch HD analog video UTP transceiver transfers real-time analog video signal up to 1200m through Cat5/5e/6 cable. It is compatible with analog video signals of CVBS, HDCVI, HDTVI, and AHD. The transceiver consists of SV unit connecting with DVRs and RM unit with cameras. It features protections of surge immunity and ESD immunity. The transceiver with small volume and joinable design fits easily in many locations. (e.g., villa, super market, office, hotel).



ADVANTAGES



• Power supply: 12～20V DC / 9～24V AC

• Transmission signal: HDCVI, HDTVI, AHD, CVBS signals 4 in 1 full compatible design

• Transmission distance: 0～750m (work with passive balun and active receiver)

• Major function: Adopt twisted-pair to transit video, switch adjust transmission distance

• Safety Performance: Power high anti-interference, superior surge immunity, ESD protection and anti-interference ability, wide-voltage DC/AC input

• Mechanics: Combined connection available, optional MIT rack, which satisfy multi channels centralized application. Transfer video signal in real-time via twisted-pair, active video transmission solution, max.750m transmission distance
