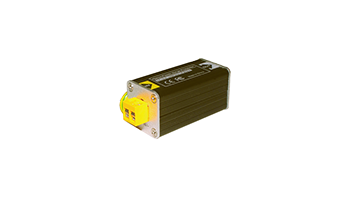

UTEPO USP201PW24 Lightning protection on power cord (12-24 Vac / Vdc), standard IEC61643-21: 2000
UTEPO USP201PW24 is a low voltage lightning protection developed according to the standard IEC61643-21: 2000. This device operates on 24V and is characterized by a lot of protection, high capacity, voltage limitation, fast response and reduction of possible damage. USP201PW24 is a lightning protection suitable for protection of low voltage systems (video surveillance cameras, DVRs, monitors) from overvoltages, imbalance in supply voltage or electrostatic charge. Active grounding of the device is required for USP201PW24 to work properly.
-
Standard: IEC61643-21: 2000
-
Protection: 12-24V AC / DC supply voltage for cameras, DVRs and CCTV monitors
-
Grounding: cable for direct grounding
-
Operating voltage: 24V
-
Rated / Maximum discharge current (8 / 20μs): 5KA / 10KA
-
Pulse voltage limitation (10 / 700μs): < 200V
-
Response time: ≤25ns
-
Dimensions: 70mm × 25mm × 25mm
-
Housing material: Aluminum
