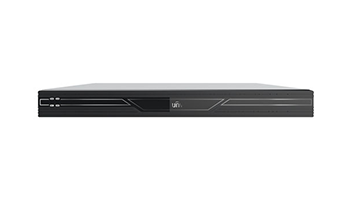

Uniview VMS-B180-A integrated video surveillance platform for small and medium sized applications



VMS-B180-A is an integrated video surveillance platform for small and medium sized applications. It can connect and manage devices such as IPC, NVR, face recognition terminal, decoder, network keyboard, access controller, alarm controller. VMS-B180-A is easy to deploy, stable and scalable, and it is widely applicable in LAN-based applications such as residential areas, buildings, campuses, hotels, retail stores, and WAN-based applications such as networked chain stores.



* Connection: Connect and manage 250 devices, 500 video channels.

* Management: Unified management of IPC, NVR, face recognition terminal, decoder, network keyboard, alarm controller, access controller, cloud devices.

* Bandwidth: 512Mbps input bandwidth, 384Mbps output bandwidth.

* Compatibility: Support standard Onvif and RTSP.

* Service: Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions, access control management.

* Access: Browser/Server, Client/Server and mobile clients (both iOS and Android).

* Smart: Multiple smart functions including cross line detection, intrusion detection, face detection, LPR, face recognition, mixed traffic detection, people counting, behavior search, and alarms and reports.

* Stability and reliability: Linux OS, 802.1x authentication, ARP protection, HTTPS, Telnet enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering.

* Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query.

* Interfaces: 4 x 1000Mbps Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 x USB 3.0, 1 HDMI and 1 VGA.



Weight ≤ 4.1 Kg (without HDD)
