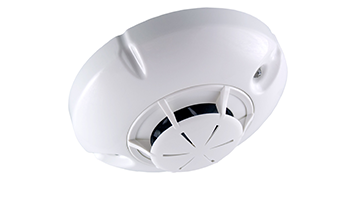

Optical smoke Fire Detector 8030



Conventional optical smoke detector with micro processor control, self-compensation of pollution, insect protection algorithm, 2 LED indicators, DC24V parallel signal output, ABS material, color white. Protected area, circle with a diameter of 15m at a mounting height of 11m. Operating voltage DC10 ~ 30V, standby current 120µA. Maximum cable cross section 0.5-2.5mm². Operating temperature: -10º ~ 55ºC. Degree of protection IP43. Size with base ф100х47mm. EN standards: EN54-7: 2000 / A2: 2006.



PRODUCT DESCRIPTION



The optical smoke fire detector provides reliable early warning of a Fire condition responding to fixed threshold smoke concentration detected in the protected premises.



The smoke sensitivity is factory preset in accordance with European Standard EN54-7.

The fire detector is controlled by a microprocessor. FD8030 operates with an improved algorithm for self-compensation of the optic chamber contamination, signaling the necessity for dusting the chamber. It is done quickly due to the easy dismantling and assembling of the body cover.

The construction of the optic chamber and the new technology used in the manufacturing of the screen provides high level protection against entering dust particles and insect and working under strong air flow.







Technical data
