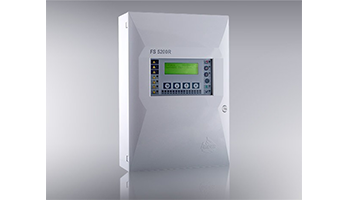

UniPos Firetek FS5200R RS485 Remote panel/repeater for control and signaling from panels



RS485 Remote panel/repeater for control and signaling from panels: FS 4000, FS 5100, FS 5200, FS 5200E, FS 5200R. Up to 15 slaves in one system. Communication speed 9600Bps, maximum distance 1200m(2x1.0mm2, CU, shielded). Built-in 4-line LCD screen and sound alarm. Non-volatile memory, 100 events. Interfaces: 2x siren output DC24V/500mA with status monitoring, 1x fire relay output NO/NC AC125V/3A, DC30V/3A. 1x relay output NO/NC "Fault" AC125V/3A. AUX output DC24V, Total consumption for executive devices 1.2A (Sirens, AUX). Compatible batteries 2x 4.5Ah/12V. Power supply: AC220~230V. Body with dimensions: 320x220x95mm/1.6kg and degree of protection IP40. EN Standards: БДС EN 54-2:1997.
