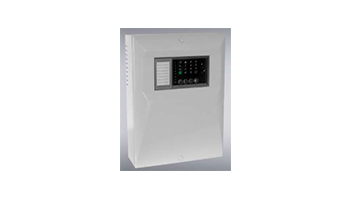

UniPos Firetek FS4000/8 Conventional panel with 8 fire alarm lines, up to 32 detectors in a line. Monitoring the status of lines and outputs



Conventional panel with 8 fire alarm lines, up to 32 detectors in a line. Monitoring the status of lines and outputs. Ability to configure adjacent lines in an "I" scheme. Different levels of access. Possibility for the panel to distinguish a downed detector from a line break. Possibility of delaying the outputs. Light and sound signaling. Maximum line length: 1500m(CU 2x1.5mm2), 1000m(CU 2x1.0mm2), 500m(CU 2x0.5mm2). Interfaces: 2x siren output DC19-27V/1A with status monitoring, 1x relay output NO/NC AC125V/3A, DC30V/3A. 1x relay output NO AC125V/3A, DC30V/3A. 1x relay output NO/NC "Fault" AC125V/3A. AUX output DC24V, Total consumption for executive devices 1.2A (Sirens, AUX). 1x relay input for reset. Possibility to add module FD4201/8 for 8x relay outputs and RS485 for connection with remote panel FS5200R. Compatible batteries 2x 7Ah/12V. Power supply: AC187~252V. Dimensions: 304x222x94mm/0.98kg. EN Standards: BDS EN 54-2:1997/A1:2006/AC: 2009, EN54-4:1997/A2: 2006/AC2009.
