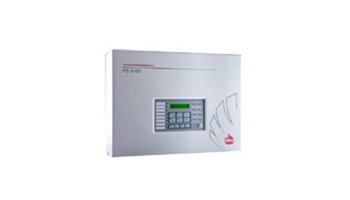

UniPos Firetek FS 5100 Conventional panel with 2 fire alarm lines, up to 32 detectors in a line



Conventional panel with 2 fire alarm lines, up to 32 detectors in a line. Possibility of expansion up to 8 lines. Monitoring the status of lines and outputs. Possibility to configure the lines in an "I" scheme. Possibility of delayed exits. Day/Night mode. Adjustable trigger thresholds for operation with detectors from other manufacturers. Built-in single-line LCD screen and sound alarm. Non-volatile memory. Configurable from the built-in keyboard or software. Different levels of access. Possibility for the panel to distinguish a downed detector from a line break. Maximum line length: 1500m(CU 2x1.5mm2), 1000m(CU 2x1.0mm2), 500m(CU 2x0.5mm2). Interfaces: 2x siren outputs DC24V/100mA with status monitoring, 2x fire relay outputs NO/NC AC125V/3A, DC30V/3A. 1x relay output NO/NC "Fault" AC125V/3A. AUX output DC24V, Total consumption for executive devices 1.3A (Sirens, AUX). Ability to add an RS485/RS232 interface for control/configuration. Compatible batteries 2x 7Ah/12V. Power supply: AC220~230V. Metal housing with dimensions: 445x327x87mm/5.2kg and IP40 degree of protection. EN Standards: БДС EN 54-2:1997/А1:2006/АС: 2009; БДС EN 54-4:1997/А2: 2006/АС 2009.
