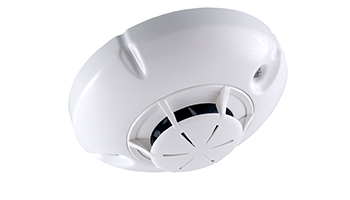

UniPos Firetek Fire detector thermal maximum 8010



Conventional thermal detector. 2 LED indicators, DC24V parallel signal output, ABS material, white. Temperature class A2S / BS. Protected area, circle with a diameter of 10m at a mounting height of 8m. Operating voltage DC10 ~ 30V, standby current 40µA. Inside. Maximum cable cross section 0.8 ~ 1.5mm². Operating temperature: -10º ~ 55ºC. Degree of protection IP43. Size with base ф100х47mm. EN standards: EN54-5.



Fixed temperature heat detector FD8010



The fire detector provides reliable early warning of a Fire condition upon ambient temperature reaching a fixed temperature threshold.

It is available in two versions (A2S or BS) depending on the temperature threshold in accordance with the European Standard EN54-5.



PRODUCT DESCRIPTION



The fire detector provides reliable early warning of a Fire condition upon ambient temperature reaching a fixed temperature threshold.

It is available in two versions (A2S or BS) depending on the temperature threshold in accordance with the European Standard EN54-5.

The fire detector is suitable for premises with normal or high ambient temperature, with possible sudden changes.







Technical data
