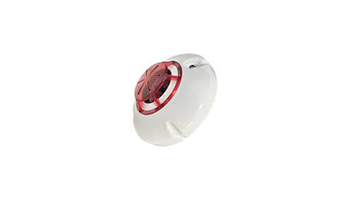

UniPos Firetek FD8040 Conventional infrared flame detector



Conventional infrared flame detector. 2 LED indicators, parallel indicator output DC24V, material ABS, color white. Coverage angle: 45o. Operating range 800~1000nm. Operating voltage DC10~30V, standby current 300μA. Maximum cable cross-section 0.8-1.5mm2. Operating temperature: - 10o~55oC. Degree of protection IP43. Size with base f106x53mm. EN standards: EN54-10.
