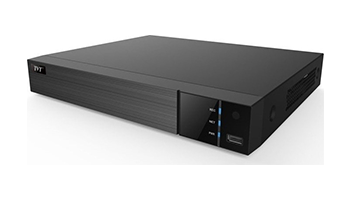

TVT TD-2704TS-HC 1080P lite Hybrid HD DVR



H.265 / H.264 2Mpix 4 (6) -channel HDCVI / TVI / AHD / Analog / IP pentabrid digital recorder (DVR); Supports cameras with resolution up to 5Mpix *. Recording: * 5M- N (1296x1944) - 40fps, 4M-N (1280x1440) - 48fps, 1080P (1920x1080) - 48fps. or 720P-Realtime 100 fps. Supports 4x HDCVI / TVI / AHD or analog cameras. 4x BNC video inputs with automatic recognition HDCVI / TVI / AHD / Analog, 4x RCA audio inputs / 1 RCA audio output, 1x VGA Out (1920x1080), 1x HDMI Out (1920x1080), 1x BNC Out (Spot / Main). Hard disk up to 1x SATA / up to 8TB disk /, 1x eSATA. Functions: Motion recording; continuous; on schedule, system alarms, BackUP, P2P. Interfaces: 1x RJ-45 Port (100M), 4x Alarm inputs, 1x Alarm outputs, 1x RS485 - for PTZ, 2x USB2.0. Ability to add up to 2 IP cameras (4 + 2), 5Mpix (max 16 / 40Mbps input / output bandwidth). Monitoring applications: Windows; MAC; Android; iOS; Updated intuitive GUI with mouse control. DC12V / 10W without HDD. Dimensions: 300 × 249 × 45mm.
