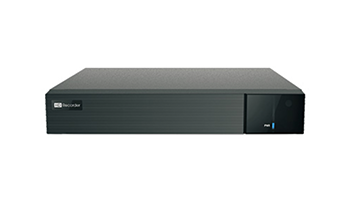

TVT TD-2116NS-HC 5-Hybrid network recorder 16Ch, 1080p/15fps



TD-2116NS-HC-H is a high definition DVR with ability to connect analog and IP cameras simultaneously, which adopts the standard H.265  high profile compression format and the advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system.   TD-2116NS-HC-H supports 16 CH analog video input, 1 CH audio input and simultaneous 16 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.



Features

Supports 16 CH TVI / AHD /CVI  5MP / 4MP / 1080P / 720P / WD1 video input

Supports 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input

8CH analog video input can be switched to 8CH  IP video input

Adopt standard H.265  high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse

Multi-mode recording: manual / timed / sensor /motion / AI recording

Playback : 16 CH simultaneously playback

Search: time slice, time, event, tag search

Express and flexible backup via USB, network and so on

Pentaplex: preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol

Remote control via Web or CMS : preview, playback, backup, PTZ and configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

Authorization management, log review and device status review

Support 1080P output, true high resolution display

Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

Support NAT function and QRCode scanning by mobile phones

Powerful mobile surveillance by smart phones with iOS and Andriod OS



5-Hybrid network recorder 16Ch, 1080p/15fps. Compatible with technologies: HD-TVI / HD-CVI / AHD. Supports additional 8x IP up to 5Mp. Greek menu. It has the H.265 HEVC compression algorithm for increased image quality with lower bandwidth requirements, but also for less storage space requirements. Supports 1x HDD up to 10TB. 3-stream encoding and 2-stream recording to avoid interruption of transmission and playback. HDD S.M.A.R.T function, for continuous control of the hard disk condition and possibility to repair the damaged area. Excellent surge protection (with contact discharge up to 4KV and air discharge over 8KV). Smart Search function for easy and quick search of an event, as only the recordings in which there are changes, in a specific point of the image (defined by the user) are displayed. It has 1x Audio input and RS-485 port for PTZ control. NVMS 9000 Program. Super Live Plus App for Android and IOS. Supports DDNS / uPnP / NAT. Playback on HDMI(1080p), VGA(1080p) and CVBS (800x600) outputs. Includes USB MOUSE.
