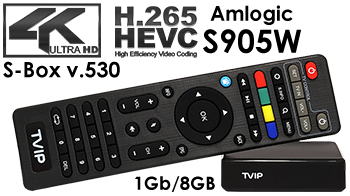

The TVIP S-Box v.530 is the ideal IPTV box / receiver to enter the UHD 4K world. The TVIP S-Box v.530 supports streaming media content, video on demand (VoD), high-quality digital channels, and access to OTT content such as YouTube, Picasa, weather forecasts, and more.

Operating system / CPU / memory

Operating system: Linux
SOC: Amlogic S905W quad core 1.2 GHz
8GB flash, 1GB RAM
OpenGL ES 2.0 (Mali-450 penta core)
OSD / Video resolution 3840x2160 (HDR)
Highlights

Middleware TVIP support
IPTV Middleware PORTAL Support
Stalker capability
Middleware over TVIP TMS, IPTVPORTAL, Open JSON API, Stalker, Microimpuls, Smotreshka, HTML5 / JS portals
Middleware with simple M3U playlists
Media playback via media player via USB storage media / MicroSD cards / PC & NAS in the local network
Electronic program guide
Air Mouse support
Integrated browser
picture viewer
OTT content: YouTube, Picasa, weather forecasts, etc.
AirPlay-enabled
DLNA-compatible
Samba support
Video Containers: MPEG-TS, MPEG-PS, MP4, MKV, AVI, MOV, FLV, OGG
Video Codecs: H.265 (10 bit), VP9, ​​H.264, MPEG4 ASP, Xvid, MPEG2, MJPEG up to 1080p 60fps or 2160p 30fps
Audio Codecs: MPEG / MP3 / MPA, AAC, WMA, OGG, WAV, FLAC, APE
Picture formats: JPEG, PNG
Subtitle formats: DVBSUB, VOBSUB, Teletext, SSA / ASS, SubRip, MOV_TEXT, WebVTT
CAS / DRM: TVIP, IPTVPORTAL, BISS, Widevine L3, optional: PlayReady
Compatible with FAT16 / 32, NTFS (read), NFS, Ext2, Ext3
connections

HDMI Out
USB
MicroSD
External IR receiver
AV jack
LAN
WLAN 802.11 (b / g / n / ac) 2.4 / 5 GHz interface
Power connection 5V DC
delivery

TVIP S-Box v.530
remote control
2x AAA battery
HDMI cable
AV Chinch- / jack cable
External infrared eye
power cable
Power supply 5V / 2A
quick start Guide
