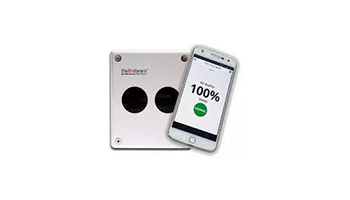

The Fire Beam FB Blue Conventional reflector linear optical smoke detector with motorized IR transmitter for conventional or via I/O module for addressable systems



Conventional reflector linear optical smoke detector with motorized IR transmitter for conventional or via I/O module for addressable systems. Bluetooth setup and support. Free app. Range 7~70m expandable to 160m. Motorized head adjustment angle: V±5°, H±5°. Detection width 1-15m(16.5m). Operating frequency in IR range 870nm. LCD display for configuration, TX/RX signal level. Sensitivity adjustment, temperature compensation, Automatic adjustment of signal level and trigger threshold to environmental changes and transmitter/reflector contamination, Hysteresis function to monitor signal level fluctuations with 1~40% adjustment to avoid consecutive/ false engagements. 6x frequency/phase modes to avoid interactions when working together with multiple detectors. LED status indication. Interfaces: 1x No/NC Fire, 1x NO Fire(2A/DC30V) 1x Fault, 1x Reset input. Power supply: DC12~30V, Standby current 3.5mA. Operating Temp: -10°~55°C. Modular housing with degree of protection IP65 and dimensions: IR transmitter 180x155x137mm, controller: 185x120x62mm. EN standards: EN54-12: 2015, EN50130-4: 2011, EN 61000-6-3:2007+A1:2011, Vds. Kit: motorized IR transmitter, controller, 70m reflector.
