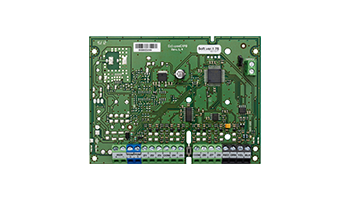

TELETEK ZONE 8 Exp Eclipse ZONE 8 extender compatible with Eclipse series



Eclipse ZONE 8 extender compatible with Eclipse series, 8 additional zones. Power from the panel. Standards: EN50131 Grade3 Class II



Eclipse ZONE 8 is an expander for adding 8 additional zone inputs to ECLIPSE Series system configuration. The added zones are fully programmable from the

control panel. The power supply is from the panel. In configuration with Eclipse 32 control panel the expander module can be mounted in the control panel box (under the main PCB). The module can be installed also in a universal small plastic box.



Description



Connection directly to the system bus;

8 additional zone inputs with freely programmable parameters;

Additional terminal +/- AUX for power supply for detectors with consumption up to 0.75A;

Additional +PGM output for power supply of auxiliary devices with consumption up to 0.75A;

Additional PGM output, 100mA,OC type (open collector).
