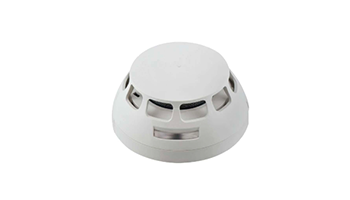

TELETEK VELLA T110 IS Addressable panel thermal detector SIMPO



Addressable panel thermal detector SIMPO (IS with built-in isolator) latching, microprocessor control. Class selectable from control panel: A1/R, A2/S, B/S. Protected area: 35m2 (EN54-14). Maximum installation height 8m (EN54-14). LED indicator, output for parallel indicator, material ABS, color white. Operating voltage DC15~32V, standby current 130μA. Alarm current 6.5mA. Maximum cable cross-section 2.0mm2. Operating temperature: -10o~60oC. Degree of protection IP30. Size with base f103x42mm. EN standards: EN54-5: 2000 CLASS A1S, EN54-14.
