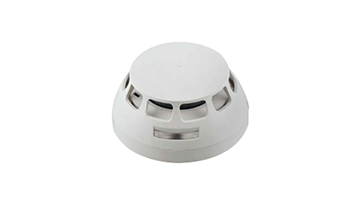

TELETEK VELLA M140 Addressable combined detector optical-smoke, thermal and thermal-differential detector for panel SIMPO



Addressable combined detector optical-smoke, thermal and thermal-differential detector for panel SIMPO (IS with built-in isolator), locking, microprocessor control and adjustable sensitivity and operating mode, self-compensation algorithm. Adjustable operating temperature A1S/A2S/BS. Protected area: 120m2 (EN54-14). Maximum installation height 10m (EN54-14). 2 LED indicators, parallel indicator output, material ABS, color white. Operating voltage DC15~32V, standby current 160μA. Maximum cable cross-section 2.0mm2. Operating temperature: - 10o~60oC. Size with base f103x49mm. EN standards: EN54-5: 2000 CLASS A1S EN54-7 : 2000+A1:2002. EN54-5: 2000, EN54-14
