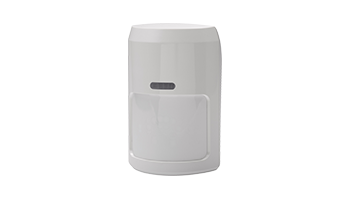

TELETEK TITAN MW/АМ Combined digital PIR & MW detector and anti-masking/anti-spray function with animal immunity for PIR element up to 12kg



Combined digital PIR & MW detector and anti-masking/anti-spray function with animal immunity for PIR element up to 12kg, Adjustable sensitivity/range: PIR: 1.5-15m/&MW: 5-15m/90 ̊. Detection of objects moving at a speed of 0.2m/s~3.5m/s. Two-way digital temperature compensation. Triple Knock function to reduce false starts. Immunity to white light. Radio protection RFI and EMC protection, 10V/m at frequencies 80MHz to 2.7GHz, Puls count and automatic sensitivity adjustment. 54 zones. Installation height: 1.5m–3.6m (recommended 2.1m). Relay outputs: Alarm NC 30VDC/100mA, Tamper NC 18VDC/50mA. Power supply: DC9~18V/23- 46mA. Dimensions: 66x132x60mm. Operating temperature: -20°~50°C. EN50131-2-2 Grade 2 Class II.
