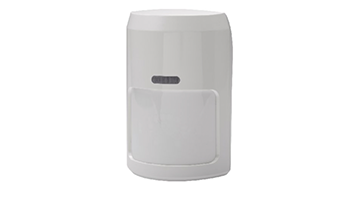

TELETEK TITAN AG Digital PIR detector with immunity for animals up to 12kg



Digital PIR detector with immunity for animals up to 12kg, range 20x15m/90 ̊. Detection of objects moving at a speed of 0.2m/s~3.5m/s. Digital temperature compensation. Immunity to white light. Radio protection RFI and EMC protection, 10V/m at frequencies 80MHz to 2.7GHz, Puls count and automatic sensitivity adjustment. 54 zones. Installation height: 1.5m–3.6m (recommended 2.1m). Relay outputs: Alarm NC 30VDC/100mA, Tamper NC 18VDC/50mA. Power supply: DC9~18V/<15mA. Dimensions: 62x97x50mm. Operating temperature: - 20°~50°C. EN50131-2-2 Grade 2 Class II.
