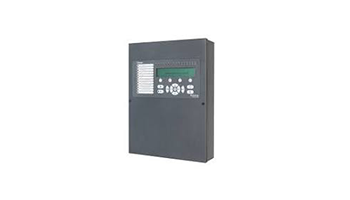

TELETEK SIMPO Addressable fire alarm control panel with 1 loop, expandable to 2 loops



Addressable fire alarm control panel with 1 loop, expandable to 2 loops. Up to 250 devices in a loop - SensoIRIS/VELLA series (max 500mA). Supports 48 zones. Built-in LCD display (4 lines x 40 characters), LED and sound indication. Monitoring the status of lines and outputs. Programmable time intervals. Different test modes. Non-volatile memory with 10,000 events. Configurable from the panel or ProsTE software. Different levels of access. Supports loop branches. Manual/Automatic Addressing. Interfaces: 2x siren outputs DC24V/500mA with status monitoring, 3x relay outputs NO/NC (Fire, Fault and EXT.) DC24V/300mA. 4x programmable relay outputs NO/NC DC24V/15A. 3x dedicated inputs. 1x USB for management/configuration. Compatible batteries 1x18Ah/12V. Power supply: 90~264VAC. Case size: 306x412x81.2mm/4.2kg. EN Standards: BDS EN 54-2:1997 /A1:2006 /AC: 2009, EN54- 4:1997/A2:2006/AC:2009.
