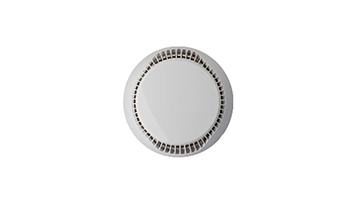

TELETEK S 130 IS Addressable optical smoke detector for panel iRIS



Addressable optical smoke detector for panel iRIS (IS with built-in isolator) lock, microprocessor control and adjustable sensitivity, self-compensation algorithm. Protected area: 120m2 (EN54-14). Maximum installation height 11m (EN54-14). 2 LED indicators, parallel indicator output, material ABS, color white. Operating voltage DC15~32V, standby current 130μA. Maximum cable cross-section 2.0mm2. Operating temperature: -10o~60oC. Size with base f103x42mm. EN standards: EN54-7 : 2000+A1:2002, EN54-14
