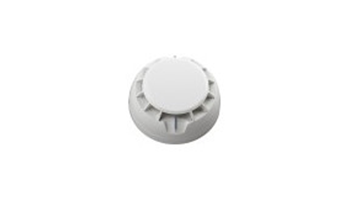

TELETEK R20 (ST) SensoMAG conventional thermal and thermal differential detector



SensoMAG conventional thermal and thermal differential detector, threshold 58°C or sharp rise. LED indicator, parallel indicator output DC24V, material ABS, color white. Temperature class A1/R. Protected area, circle with a diameter of 10m at an installation height of 8m. Operating voltage DC10~30V, standby current 40μA. Maximum cable cross section 0.8~2mm2. Operating temperature: -10o~60oC. Degree of protection IP30. Size with base f102x47mm. EN standards: EN54-5.
