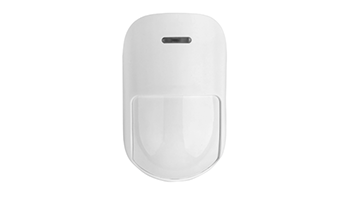

TELETEK PIRIN DL Digital PIR detector with immunity for animals up to 12/24kg



Digital PIR detector with immunity for animals up to 12/24kg, range 20x15m/90 ̊. Detection of objects moving at a speed of 0.3m/s~3m/s. Digital temperature compensation. Immunity to white light, RFI and EMC protection, 10V/m at frequencies 80MHz to 6GHz, Puls count and automatic sensitivity adjustment. 71 zones, 7 sensitivity levels. Recommended installation height: 2.1m. Relay outputs with built-in balancing resistors. Power supply: DC9~18V/<15mA.
