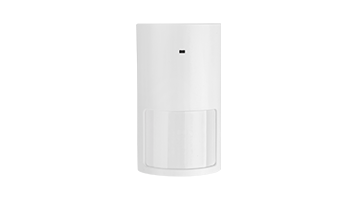

TELETEK PAX PIR Wireless PIR detector with PET immunity for animals up to 10kg



Wireless PIR detector with PET immunity for animals up to 10kg compatible with Bravo Next and Eclipse series via PAX WL. Range: 12m@90°. Adjustable detector sensitivity with 2 levels. Beacon+ protocol for two-way encrypted communication with a frequency in the 868MHz range and a range of up to 1500m in direct line of sight. Installation height 2.1m. Dimensions: 118x63x55mm. Power supply: batteries 1x CR123A, life up to 6 years. Operating temperature: -10°~50°C. Color: White.



Description



Bi-directional type for wireless communication

Jamming detection and communication channels encryption

Signal strength indication (RSSI)

Standard type of batteries – CR123A

Energy saving mode

Front cover and rear (anti-tear) tamper

Adjustable pulse filter – 1 or 2 pulses

Automatic temperature compensation

Events transmitted: Detection of movement, Tamper activation, Low battery

54 Detection zones

PET Immunity Up to 10kg

Coverage angle – 90°

Installation method – Indoors
