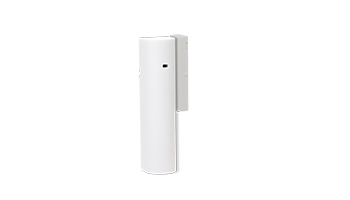

TELETEK PAX MC2 Wireless magnetic contact compatible with Bravo Next and Eclipse series via PAX W



Wireless magnetic contact compatible with Bravo Next and Eclipse series via PAX WL. Range 10-24mm. 1/2 wired zone input. Beacon+ protocol for two-way encrypted communication with a frequency in the 868MHz range and a range of up to 1500m in direct line of sight. Dimensions: 22x92x25mm. Power supply: batteries 1x CR123A, life up to 8 years. Operating temperature: -10°~50°C. Color: White.



Description



Bi-directional type for wireless communication

Jamming detection and communication channels encryption

Wireless communication range(open space) – up to 1500m

Signal strength indication (RSSI)

Standard type of batteries – CR123A

Front cover and rear (anti-tear) tamper

Bi-color LED activation on open (red) / close (green)

Events transmitted: Zone open/close, Tamper activation, Low battery

Installation method – Indoors

1 Hardware zone input for connecting wired detector

1 Hardware zone input for connecting roller shutter detector
