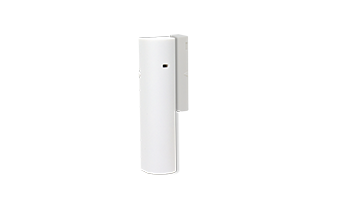

TELETEK PAX MC1 Wireless magnetic contact compatible with Bravo Next and Eclipse series via PAX WL



Wireless magnetic contact compatible with Bravo Next and Eclipse series via PAX WL. Range 10-24mm. 1/2 wired zone input. Beacon+ protocol for two-way encrypted communication with a frequency in the 868MHz range and a range of up to 1500m in direct line of sight. Dimensions: 22x92x25mm. Power supply: batteries 1x CR123A, life up to 8 years. Operating temperature: -10°~50°C. Color: White.



Description



Bi-directional type for wireless communication

Jamming detection and communication channels encryption

Wireless communication range(open space) – up to 1500m

Signal strength indication (RSSI)

Standard type of batteries – CR123A

1 wired zone input

Front cover and rear (anti-tear) tamper

Bi-color LED activation on open (red) / close (green)

Events transmitted: Zone open/close, Tamper activation, Low battery

Installation method – Indoors
