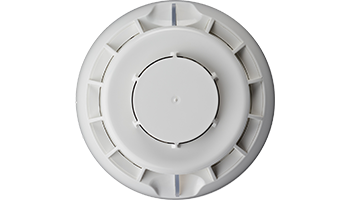

TELETEK PAX FD Wireless combination fire detector for smoke and temperature detection



Wireless combination fire detector for smoke and temperature detection compatible with Bravo Next and Eclipse series via PAX WL. Sudden temperature change detection. Beacon+ protocol for two-way encrypted communication with a frequency in the 868MHz range and a range of up to 1500m in direct line of sight. Dimensions: Ø103x56mm. Power supply: batteries 2xCR123A, life up to 4 years. Operating temperature: -10°~50°C. Color: White.



Description



Bi-directional type for wireless communication

Jamming detection and communication channels encryption

Wireless communication range(open space) – up to 1500m

Signal strength indication (RSSI)

Standard type of batteries – CR123A

24-hour fire alarm supervised zone

Rate-of-rise heat part, 10°C/min (max 60°C)

Optical chamber auto compensation

Tamper switch for self-protection of the box

Events transmitted: Fire, Tamper activation, Low battery

Installation method – Indoors
