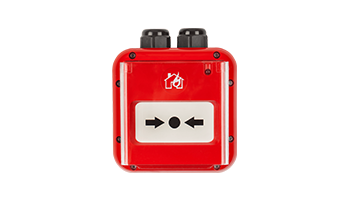

TELETEK MCP 150 IP67 Addressable moisture-proof handheld detector for SIMPO and iRIS panel with built-in isolator, rebuildable



Addressable moisture-proof handheld detector for SIMPO and iRIS panel with built-in isolator, rebuildable. LED indication. Surface mount. Operating voltage DC15~32V, standby current 125μA@24VDC. Maximum cable cross-section 2.0mm2. Operating temperature: -10o~60oC. Dimensions: 90x90x57mm. Degree of protection IP67. EN standards: EN54-11:2001/A1:2005, EN54-17:2005/AC:2007.
