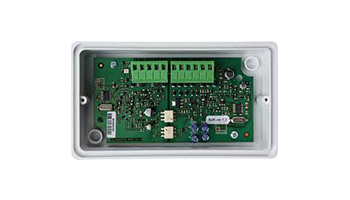

TELETEK MC Z IP65 BOX Addressable module – 1 Conventional zone with built-in insulator and PVC box for SIMPO and iRIS panels



Addressable module – 1 Conventional zone with built-in insulator and PVC box for SIMPO and iRIS panels. Connection of up to 32 conventional detectors. Loop or external power supply. . Working voltage: DC16~32V/ 150μA@24VDC. Operating temp: -10o~50oC. Dimensions: 145x84x50mm. EN standards: EN54-17
