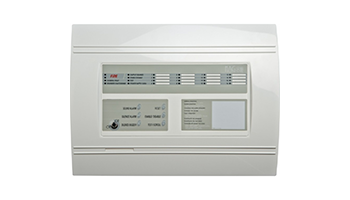

TELETEK MAG 8 Plus Conventional panel with 8 fire alarm lines expandable to 16 lines, up to 32 detectors in a line



Conventional panel with 8 fire alarm lines expandable to 16 lines, up to 32 detectors in a line. Monitoring the status of lines and outputs. Different levels of access. Possibility for the panel to distinguish a downed detector from a line break. Light and sound signaling. Interfaces: 4x siren output 24VDC/0.3A with status monitoring, 1x FIRE output NO/NC 12VDC/1A, 24VDC/0.5A. 1x FAULT output NO/NC 12VDC/1A, 24VDC/0.5A. AUX output 24VDC/0.3A. Compatible batteries 1x18Ah/12V. Power supply: 230VAC. Dimensions: Metal bottom 441x331x80mm; Cover 461x344x45mm weight - 4kg. EN Standards: BDS EN 54-2:1997/A1:2006/AC: 2009, EN54-4:1997/A2: 2006/AC2009.
