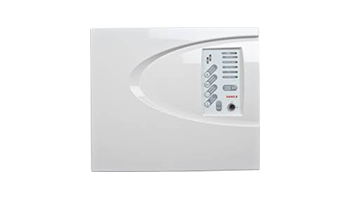

TELETEK MAG 4 Conventional panel with 2 fire alarm lines, up to 32 detectors in a line. Monitoring the status of lines and outputs



Conventional panel with 4 fire alarm lines, up to 32 detectors in a line. Monitoring the status of lines and outputs. Different levels of access. Possibility for the panel to distinguish a downed detector from a line break. Light and sound signaling. Interfaces: 2x siren outputs 24VDC/0.3A with status monitoring, 1x FIRE output NO/NC 120VAC/3A, 60VDC/3A. 1x FAULT output NO/NC 120VAC/3A, 60VDC/3A. AUX output 24VDC/0.3A. Compatible batteries 1x7Ah/12V. Power supply: 230VAC. Dimensions: 342x290x100mm/2.1kg. EN Standards: BDS EN 54-2:1997/A1:2006/AC: 2009, EN54-4:1997/A2: 2006/AC2009.
