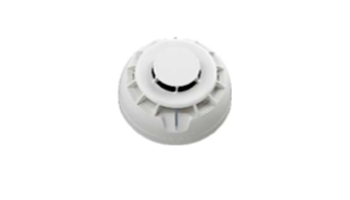

TELETEK M40 INTR Conventional SensoMAG combined detector



Conventional SensoMAG combined detector with relay base (12V) - compact, optical-smoke, thermal and thermal-differential. LED indicator, parallel indicator output DC24V, material ABS, color white. Temperature class A1/R. Protected area: 120m2 (EN54-14). Maximum installation height 11m (EN54-14). Operating voltage DC10~30V, standby current 50μA. Maximum cable cross section 0.8~2mm2. Operating temperature: -10o~60oC. Degree of protection IP30. Size with base f102x62mm. EN standards: EN54-7.
