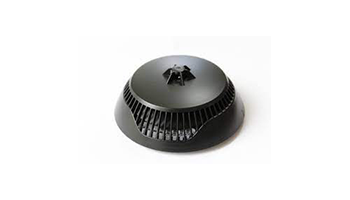

TELETEK M 140 IS Black Addressable combined detector for iRIS panel with built-in isolator, color BLACK



Addressable combined detector (IS with built-in isolator), optical-smoke, thermal and thermal-differential panel detector iRIS lock, microprocessor control and adjustable sensitivity and operation mode, self-compensation algorithm. Adjustable operating temperature A1S/A2S/BS. Protected area: 120m2 (EN54-14). Maximum installation height 10m (EN54-14). 2 LED indicators, parallel indicator output, material ABS, color white. Operating voltage DC15~32V, standby current 160μA. Maximum cable cross-section 2.0mm2. Operating temperature: -10o~60oC. Size with base f103x49mm. EN standards: EN54-5: 2000 CLASS A1S EN54-7 : 2000+A1:2002. EN54-5: 2000, EN54-14
