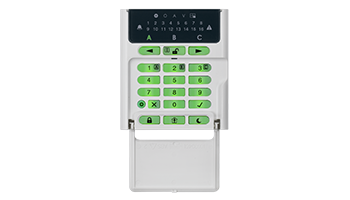

TELETEK LED 16A Eclipse LED16A
Eclipse LED16A is a keypad with LED indication of zones, troubles and arming type. It is a part of the Eclipse series alarm systems.
The keyboard provides 1 input zone. Eclipse LED16A is suitable for programming and management of systems up to 3 independent areas and up to 16 zones.
Description
Indication for 16 zones and 3 partitions;
Shortcut buttons to additional menus – Memory, Troubles display and Bypassed zones;
Quick buttons for all arming modes;
3 fast buttons’ combination for sending of PANIC, MEDICAL and FIRE alarm messages to a central monitoring station;
Supports 2 programming types: by addresses and by operations;
Adjustable intensity of backlight for the display and buttons;
Adjustable buzzer volume;
Bi-directional TAMPER switch.
16 zone LED keyboard compatible with Eclipse series, 1 keyboard zone, button illumination. Power from the panel. Dimensions 100x90x24mm. Standards: EN50131 Grade2 Class II
