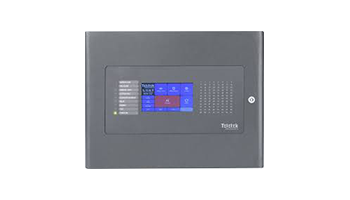

TELETEK iRIS4 (1-4)L Addressable fire alarm control panel with 1 loop, expandable to 4 loops



Addressable fire alarm control panel with 1 loop, expandable to 4 loops. Up to 250 devices in a loop - SensoIRIS series (max 500mA). Supports 96 zones. Built-in 5" TFT (color) Touch display, LED and sound indication. Monitoring the status of lines and outputs. Programmable time intervals. Different test modes. Non-volatile memory with 10,000 events. Configurable from the panel or ProsTE software. Built-in 1x Internet port for local or remote access, Cloud connectivity and mobile application. ModBUS TCP/IP protocol. Different levels of access. Supports loop branches. Manual/Automatic Addressing. Interfaces: 1x siren output DC24V/1A with status monitoring, 3x relay outputs NO/NC (Fire, Fault and EXT.) DC24V/300mA. 4x programmable relay outputs NO/NC DC24V/15A. 3x dedicated inputs. 1x USB for management/configuration. Compatible batteries 1x18Ah/12V. Power supply: 230VAC +10%/-15%. Case with dimensions: 430x330x120mm/6kg. EN Standards: БДС EN 54-2:1997 /A1:2006 /AC: 2009, EN54-4:1997/A2:2006/AC:2009.
