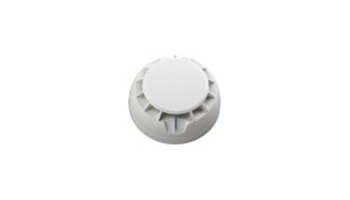

TELETEK F10A2 (ST) SensoMAG conventional thermal detector



SensoMAG conventional thermal detector, threshold 60°C / 75°C. LED indicator, parallel indicator output DC24V, material ABS, color white. Temperature class A2/S // B/S. Protected area, circle with a diameter of 10m at an installation height of 8m. Operating voltage DC10~30V, standby current 50μA. Maximum cable cross section 0.8~2mm2. Operating temperature: -10o~60oC. Degree of protection IP30. Size with base f102x47mm. EN standards: EN54-5.
