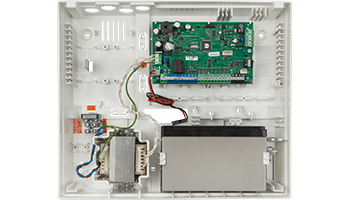

TELETEK Eclipse 99 Eclipse 99 control panel, 8 zones, expandable to 99 zones



Eclipse 99 control panel, 8 zones, expandable to 99 zones via ATZ zone duplication or wireless zone expander, division into 16 independent subsystems/groups, 5 programmable PGM & Siren outputs, 99 user codes, up to 30 BUS devices. Digital communicator - built-in; 2 phone numbers; CIA and Contact ID. PVC box set with power transformer. Space for a 7Ah battery. Dimensions 335x290x105mm. Standards: EN50131 Grade2 Class I



Description



8 zones on board, expandable to 99;

1 or 2 balancing resistors; doubling zone connection;

9 types connection styles;

16 areas;

5 Outputs – 3 low current (up to 100mA), 1 powerful (up to 1A), 1 relay (NO/NC);

Two-wire fire zone via special programming of PGM4;

4/6 digit access codes; 99 user, 1 maintenance, 1 engineer;

5000 events with date and time Memory LOG;

4 telephone numbers digital communicator, built-in, CIA and Contact ID;

3 types programming – by address, by operations, text menus –  tree structure;

Access Control via proximity readers; time slots;

Up to 30 addressed devices.
