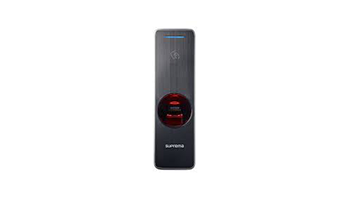

SUPREMA BioEntry W2 BEW2-OAP fingerprint access control device



Same description as BEW2-ODB, but supports more cards: iCLASS SE / SR / Seos.



Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.



BioEntry W2 is a fingerprint terminal featuring the next generation of biometric technology and Suprema's security platform. Processor: 1.2GHz, Memory: 2GB Flash + 256MB RAM. Suitable for outdoor installation (IP67), moisture resistant, vandal resistant. Supports most types of standards for single-device RFID cards, including 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1 / EV2 (DESFire EV2 cards are supported with backward compatibility on DESFire EV1 cards), FeliCa, NFC, BLE. Using infrared and white light, the reader blocks fake fingerprints made of various materials, including clay, rubber, silicon, glue, paper, film, etc. Supports 10/100 Mbps network, RS-485 (Host or Slave), Wiegand interface (Input or Output), TTL. Power supply: DC 12 V / 24 V (not included). With a width of 48 mm, it is perfect for installations in tight spaces and narrow door frames. Supports PoE (IEEE 802.3af). Operating temperature from -20 ° C to 50 ° C. Weight: 251 g. Dimensions (WxHxD): 50 x 172 x 43.5 mm. Supports tamper, booster, multicolor LED, 1 relay
